AIRMEXT

13%OFF

AIRMEXT / F-SNX5-T /T series Air suspension FULL KIT/whole kits/AIRRIDE/airlift/pneumatics/ air spring coilover assembly/air management

stars, based on 0 reviews
$1935.00now$1690.00 set
Quantity Price
1+ $1690.00
2+ $1605.50
2539items available
Contact Us

ITEM NAME:

F-SNX5-T full air suspension kit



MODEL FITMENT:


------UNIVERSAL air suspension kit (ALL CAR TYPES AVAILABLE)



PLEASE NOTE:


This air suspension are universal kit, if you need to buy kit fitted with your car model, pls just make remarks at order, we will send exact kit to you.

For different car model, this kit just differ from the air strut kit (exclusive for exclusive car model), clients just need to replace the air struts parts, other accessories are universally used.

Such as air pump, air tank, control system management etc.



----------------Pls contact with On-line service for exact CAR MODEL ---------------------



Functional Overview

-----This air suspension system is used to refit cars which weighs around 2T , Adjust the chassis height ;  Riseautomaticallywhen driving while lower when cars park, ability of shock absorption can be adjusted at random, significantly improve the comfort.

-----This is customized product as per your detailed car model , please contact with our service person before you make order and clairify your car information so that we can supply the accurate one.

-----The weight of whole set air suspension system is around 50kg, so that SHIPPING COST by EXPRESS will be higher, if you hope that we can send goods by other shipping ways, just leave message here, we will reply you asap and provide service!

----You can buy only air suspension kit (with or without coilover shock absorber),Pls leave message on aliexpress with your email or cell phone number, we will contact you asap.

---Electronically controlled air suspension system, also known as the control unit is the core part of the air suspension system and electric control system has the versatility, can be applied to all models, electronic control system for the button panel , AG and wireless remote control lift, have both before and after lifting function, supporting AG ECU to control computer, key-press panel and ECU, the ECU and solenoid valve only need a cable to plug connection between line, wiring simple. Want to know detailed content can also be the message consulting with businesses.

Features:


---- Four wheels independently controlled (RISE/DROP)

* Front 2 wheels Rise/Drop at same time

* Rear 2 wheels Rise/Drop at same time

* 4 Wheels Rise/Drop at same time


-----Four wheels Slightly adjustable


---- wired controller


----Cellphone APP control  (IOS and Android available)



---- Four wheels independently controlled (RISE/DROP)

* Front 2 wheels Rise/Drop at same time

* Rear 2 wheels Rise/Drop at same time

* 4 Wheels Rise/Drop at same time


-----Four wheels Slightly adjustable


---- wired controller


----Cellphone APP control  (IOS and Android available)


----12 kinds of language adjustable : Chinese, Traditional Chinese,English, Japanese,Spainish,French,Thai,Korean,Russian,Dutch,Germany,Arabic


---- 5-Level height memory preseted /adjustable


----Password changable


---- Long press up/down button to the end


---- LED Display for Pressure (PSI)


---- Bluetooth signal strength reminder


Display precision : up to 1 PSI

Memory accuracy: up to 3 PSI


---- Automatical Security Checking & Adjusting


---- Whole stroke of car body RISE/ DROP (5.9’’)

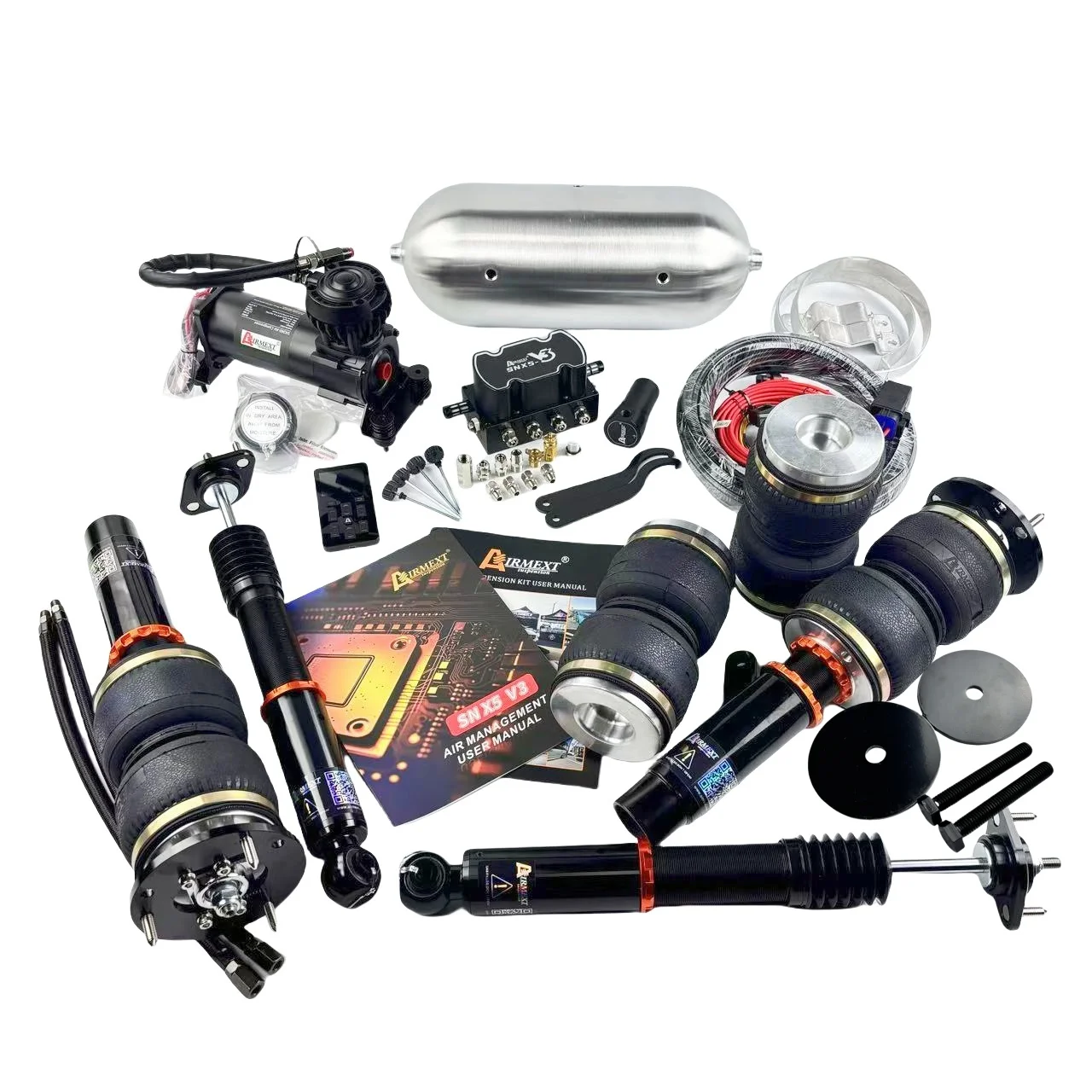

Parts included are exactly same as listed below:
SINGLE PUMP KIT A-------


(1) 2 Gallon air tank (seamless air tank) *1 piece


(2)  silent air pump (SN360)*1 piece


(3)(T series) AIRMEXT air strut kit* 1 set


(4) AIRMEXT air management (SN X5) *1 set


PARTS including:

  • *Integrated ECU& Valve Group Unit : 1 piece(Electronic Control Unit &Solenoid Valve Manifold Group )

  • *Relay: 1 piece

  • *Signal receiver: 1 piece

  • *Wired / Wireless controller Panel(LED screen) *1 piece


(5) Oil&Water Separator *1 pcs


(6) Sealing press switch(145psi on/175psi off) *1piece


(7) Connectors *1 set


(8) Air pipe, cables etc. * 1 set


(9) Buyer Manual *1 piece



DUAL PUMP KIT B-------

(1) 3 Gallon  air tank (seamless air tank) *1 piece


(2)  silent air pump (SN360)*2 pcs


(3)(T series) AIRMEXT air strut kit (including camber plate): 1 set


(4) AIRMEXT air management (SN X5): 1 set


PARTS including:

  • *Integrated ECU& Valve Group Unit : 1 piece(Electronic Control Unit &Solenoid Valve Manifold Group )

  • *Relay: 1 piece

  • *Signal receiver: 1 piece

  • *Wired / Wireless controller Panel(LED screen) *1 piece


(5) Oil&Water Separator *2 pcs


(6) Sealing press switch(145psi on/175psi off) *1piece


(7) Connectors *1 set


(8) Air pipe, cables etc. * 1 set


(9) Buyer Manual *1 piece



DUAL PUMP KIT C-------

(1) 5 Gallon air tank (seamless air tank) *1 piece


(2)  silent air pump (SN420)*2 pcs


(3) (T series)AIRMEXT air strut kit (including camber plate): 1 set


(4) AIRMEXT air management (SN X5): 1 set



PARTS including:

  • *Integrated ECU& Valve Group Unit : 1 piece (Electronic Control Unit &Solenoid Valve Manifold Group )

  • *Relay: 1 piece

  • *Signal receiver: 1 piece

  • *Wired / Wireless controller Panel(LED screen) *1 piece


(5) Oil&Water Separator *2 pcs


(6) Sealing press switch(145psi on/175psi off) *1piece


(7) Connectors *1 set


(8) Air pipe, cables etc. * 1 set


(9) Buyer Manual *1 piece






GET FULL AIR SUSPENSION KIT fromAIRMEXT OFFICIAL STOREat rock bottom price

For DEALER offer, pls send email to sales@airmext.com


BELOW PICS ARE FOR REFERENCE-------

TANK KIT PICS NOT INCLUDING AIR STRUTS -----

-----GET FULL AIR SUSPENSION KIT fromAIRMEXT OFFICIAL STOREat rock bottom price


----For DEALER offer, pls send email to sales@airmext.com

AIR MANAGEMENT SN X5--------------------

NEW APP for SN X5 for APP Store and Google Play ,OR download at our official website




----------------------------------------------------------------------------------------------------------------------------

AIR STRUT pack including:

-------4 * AIRMEXT Coilover shock absorber (2 for front and 2 for rear)

-------4 * AIRMEXT Rubber air spring (2 for front and 2 for rear)

-------2 * spacers + bolts

-------4 * 1/8NPT air fittings

-------4 * dampers

-------2 *spanners (wrenches)

-------2 * sway bar (optional if needed)

-------2 * Pillow ball camber plate (optional and extra charged,pls contact with on-line service)

-------2 * stainless steel braided air hose

-------2* Trailing Bar (optional extra charged parts, need to contact with on-line service to before make order)


Features:


-----32-level adjustable Damping

which allow you the ability to dial in your air suspension even further. Set damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.


-----Threaded & adjustable shock mounts

Adding further tuning of your ride height at any PSI setting you chose is the ability to have an adjustable  mount just like coilover kits. The benefit to this is being able to get the perfect ride height at basically any PSI you are comfortable driving at.


-----125mm drop (front &rear)

Front and rear air strut with 125mm drop (stroke) that lift & lower your car body at random, work with AIRMEXT G5 air management to be 3-level memoried height adjusted.


-----High PressureDouble Bellows Progressive Rate Spring

Engineered and designed to match your vehicle, slim double bellow type bags are available depending on what type of OEM suspension your vehicle has. Air pressure directly corresponds with how stiff or soft your car rides. Higher PSI = stiffer ride. LoweRR PSI = softer ride. Each car is different and it may take some time to dial in your preferred settings.


----High Performance AIRMEXT Shock Absorbers

Every air strut kit comes with the same quality shocks that are standard in our  coilover systems. Air strut shocks have a different internal valving setting to accommodate changes in PSI.


-----12 Month Limited Warranty
Our warranty is 12 months from the original date of purchase which covers manufacturer defects


4.This item is just air strut part of one complete set air suspension system, you need to match other accessories  as per your interest. AIRMEXT,ACCUAIR, AIRLIFT controlling system etc.


5.It is to adjust the height of chassis by automatically control, rise automatically

when driving while lower when car parks,  ability of shock absorption can be adjusted at random,

significantly improve the comfort.



SeeingHigh QualityofAIRMEXT air suspension from workmanship details----


Smooth and Fluent thread pitch



SeeingHigh QualityofAIRMEXT air suspension from workmanship details----

Perfect Anodizing processing for camber plate (top mount)


SeeingHigh QualityofAIRMEXT air suspension from workmanship details----

Perfect & smooth Black Anodizing processing for strut mount






----------------------------------------------------------------------------------------------------------------------------



4-PLY LAYER STRUCTURE MAKE AIR SPRING STRONG AND DURABLE ENOUGH !

PERFECT &NICE WORKMANSHIP OF AIR SPRING RUBBER BELLOW  (Original photos without any beautifying)

PERFECT & NICE WORKMANSHIP OF SHOCK ABSORBER (Original photos without any beautifying)

FINISHED PRODUCTS


SORTING GOODS FOR DIFFERENT CUSTOMERS

OUR FACTORY OVERVIEW

D=DIAMETERH=HEIGHT

If you cannot find fitted air spring for your coilover in our store,how to do?

FIRST STEP: Which one I,II,III,IV looks like yours?

SECOND STEP: Before make order,pls tell your coilover brand or try to measure your damper strut size as per our drawingrequired [A=? B=? C=? D=? (1)=?(2)=? ],we will customize the air spring fitted with your coilover

Item name:
AIRMEXT full air suspension kit
Type No:
F-SNX5-T
Car model fitment:
Universal, all car models
conditions:
Brand new
warranty :
12 momths for non-human damage
Version:
Luxury
