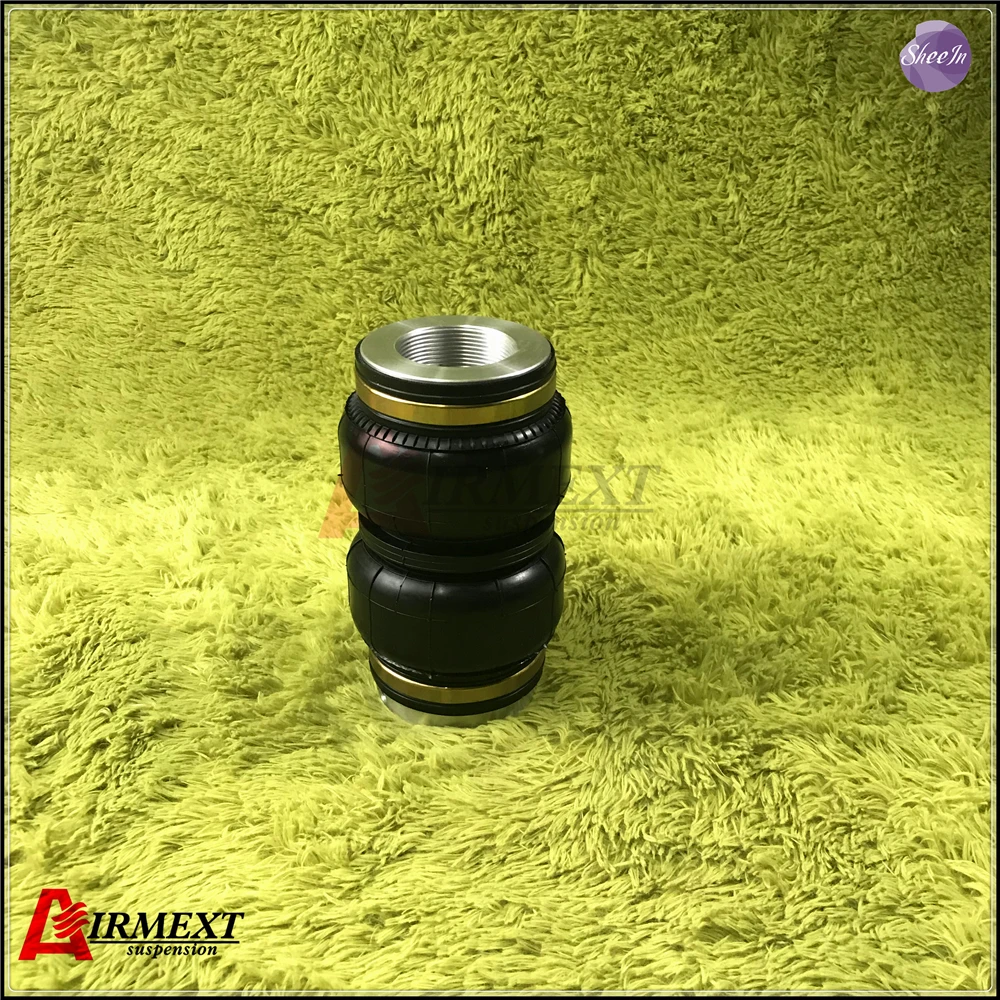

Type No: SN105170BL2

This type air spring fitted with other brand coilover (A to Z), pls select at options.

For other Customized air spring , Pls remarks your coilover brand or measurements at your order, we will send as per your remarks required, thank you!

For example: (A=? B=? C=? D=?)

Damper thread pitch(A):M52*2---Root Dia./Minor Dia. of inner thread: 52mm /50mm

Sealing part (B): 50mm -----Dia.of smooth section on damper above thread

?Top diameter(C): 10mm/12mm/14mm/18mm/20mm/22mm OPTIONAL

(D): 22mm/20mm

LEFT SIDE: SN108160BL2-BCV                      RIGHT SIDE: SN105170BL2-BCV

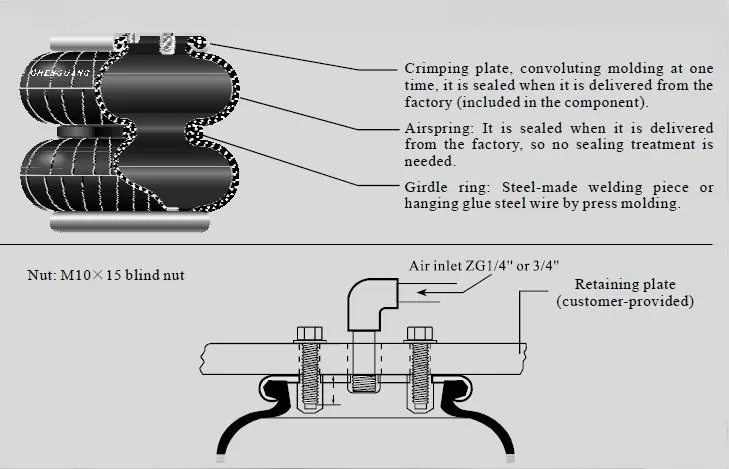

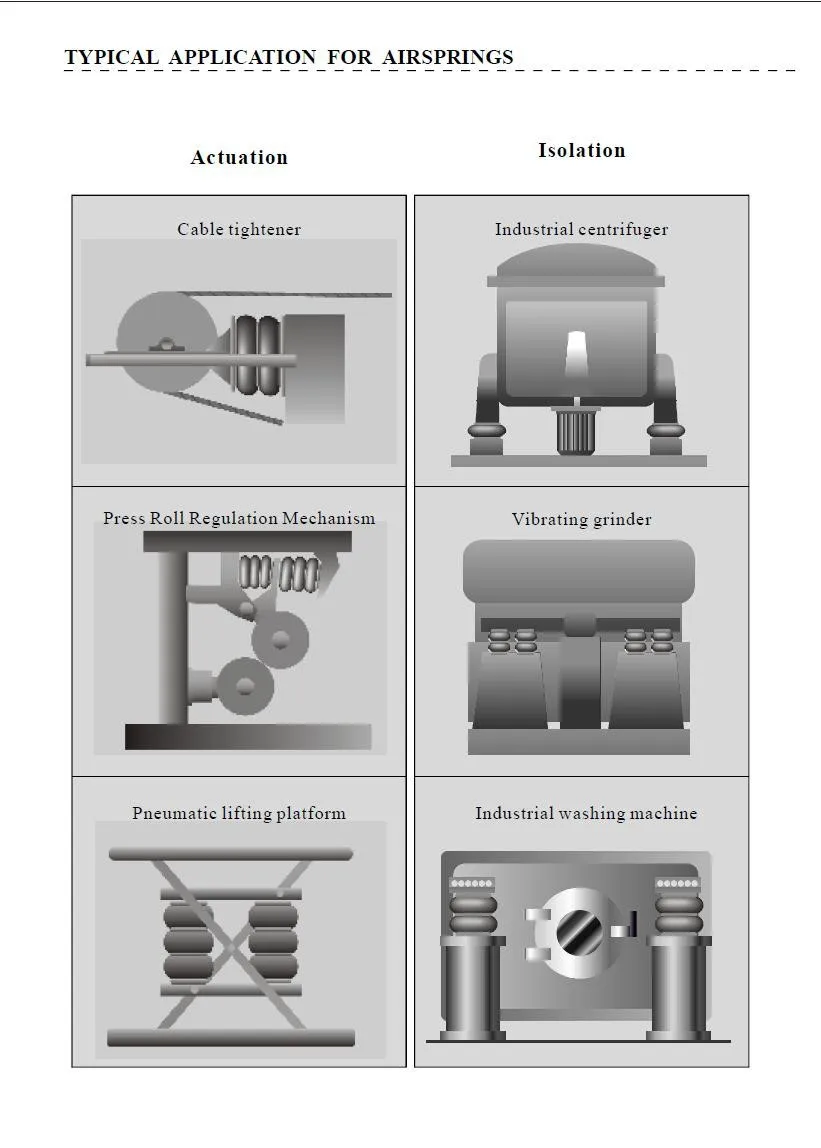

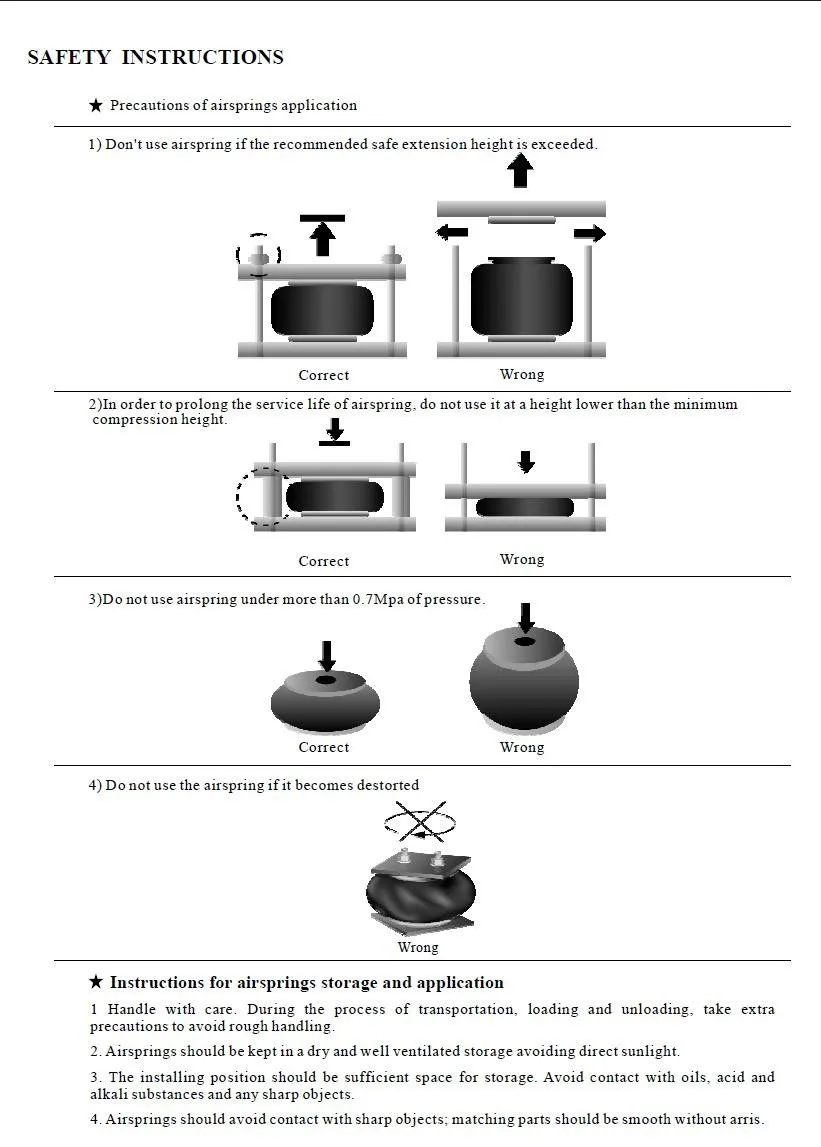

Following pics are just used for comparing:
