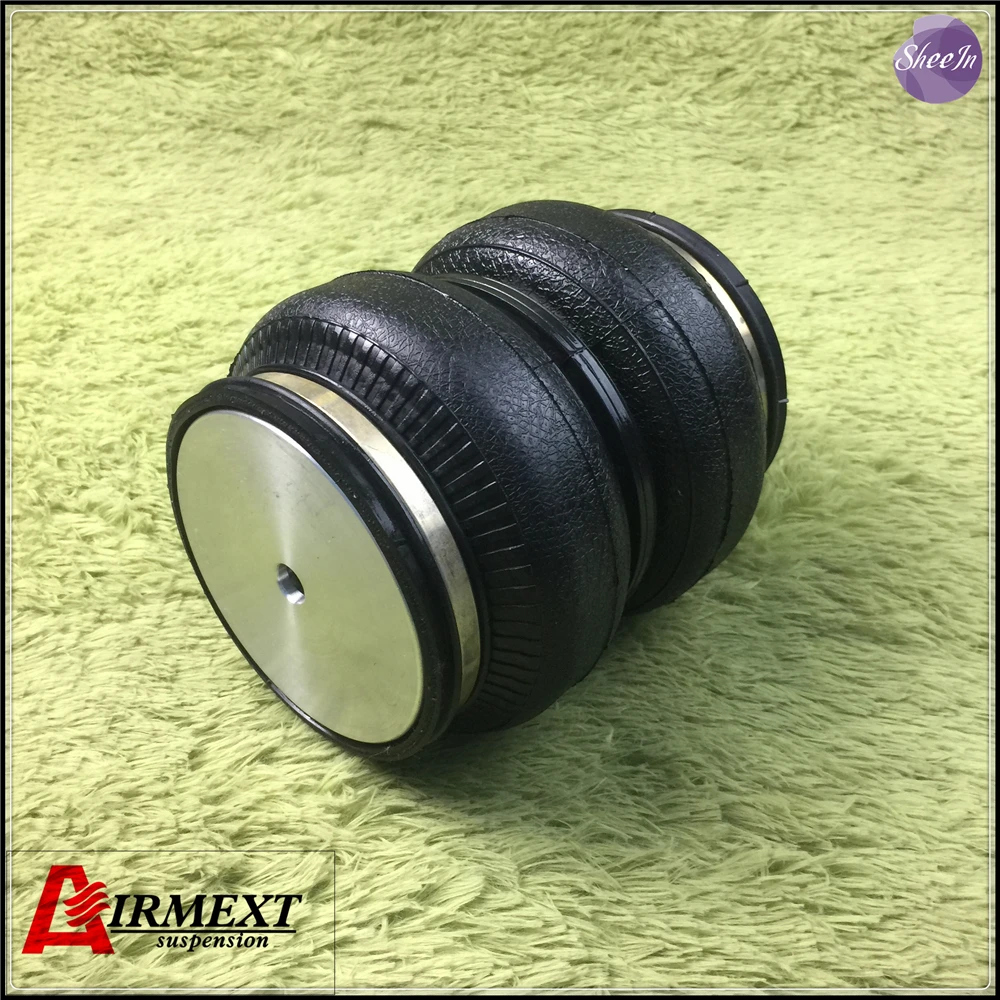

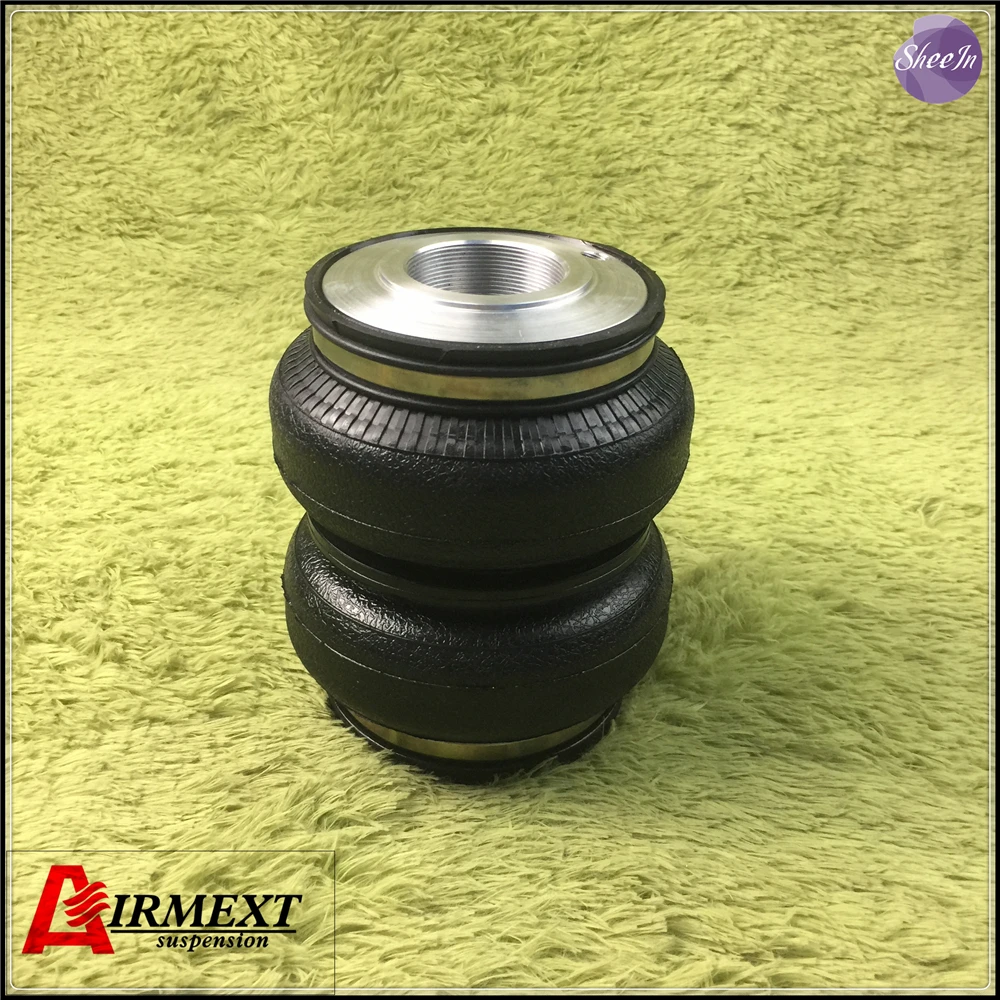

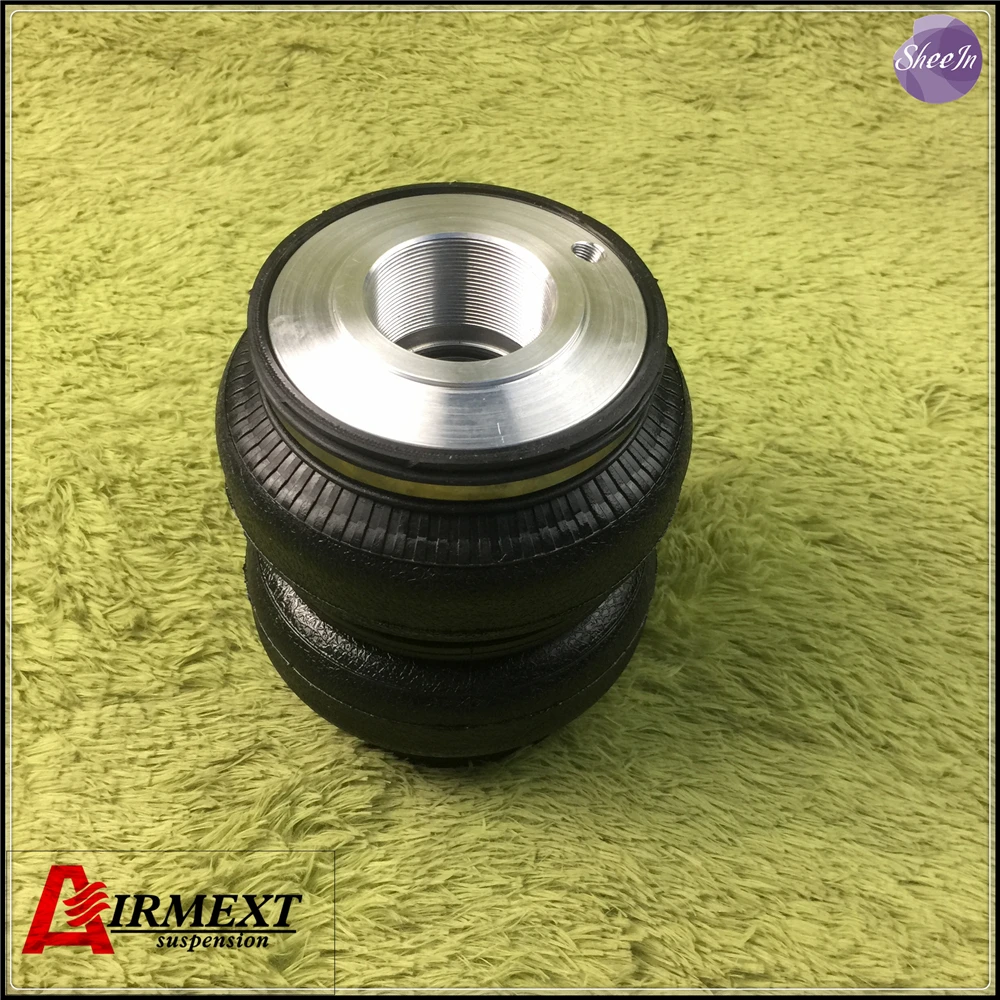

AIRMEXT?/SN142156BL2/COILOVER FITTED AIR SPRING/ brand (A to Z)/Double convoluted air spring/ shock absorber/pneumatic parts

stars, based on 0 reviews

~~$81.00~~$73.00 piece

coilover brand

Quantity Price

1+ $73.00

4+ $70.81

142156K-2H

TYPE NO: SN142156BL2

This type air spring fitted with other brand coilover (A to Z), pls select at options.

For other Customized air spring , Pls remarks your coilover brand or measurements at your order (take our drawing required as Ref), we will customize the same series air spring with your required dimension, thank you!

For example: (A=? B=? C=? D=?)

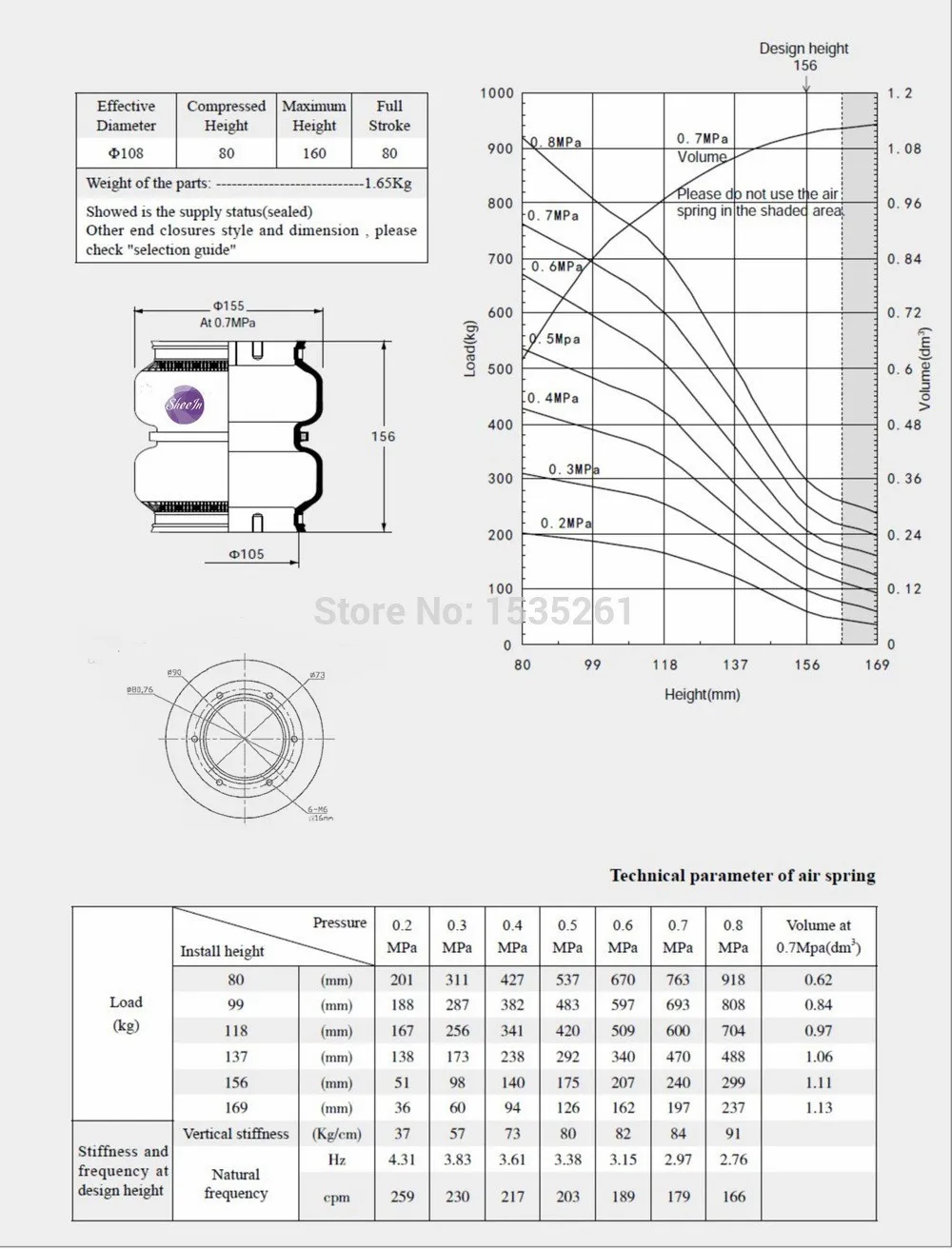

Damper thread pitch(A):M52*2---Root Dia./Minor Dia. of inner thread: 52mm /50mm

Sealing part (B): 50mm -----Dia.of smooth section on damper above thread

?Top diameter(C): 10mm/12mm/14mm/18mm/20mm/22mm

(D): 22mm/20mm

Don't understand why some air spring endplates must be made separated ? Read explanation as below------

It depends on the smooth section diameter (B), if it is larger than diameter of shocks thread (air spring root smaller thread diameter ),the air spring endplates must be designed separated two parts like this.

For example, M55*1.5-54, shocks smooth section diameter (B) is 54mm, it is larger than shocks thread part diameter（air spring root smaller thread diameter ）55-1.5=53.5, the air spring cannot get through the smooth section(B=54mm), so we have to make the endplates two parts, assembly air spring with shocks from both top and bottom direction (air spring screw from top, separated endplate screw from bottom)

M55*2-54/M12, 54mm＞55mm(bigger thread diameter)-2mm (thread pitch)

* This air spring cannot get through the smooth section(B=54), screw the separated endplate from bottom side of shocks and meet with air spring, finally connect two parts with bolts.

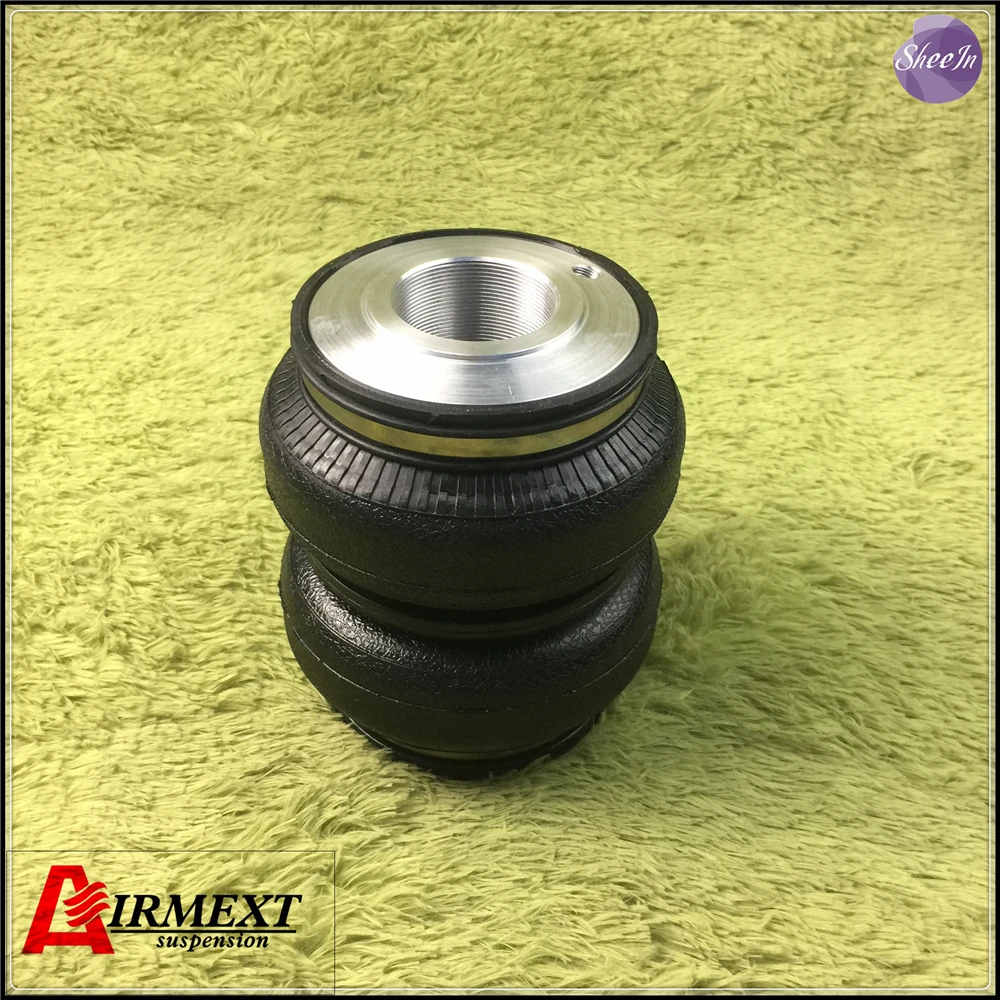

Design: Slope surface, this design is better to avoid air fittings blocking damper lock rings when screw it

With bolts (M6-25mm )and sealing O-rings(75mm*2.65mm) , Customers can match bolts and sealing O-rings by yourselves or buy from our store
