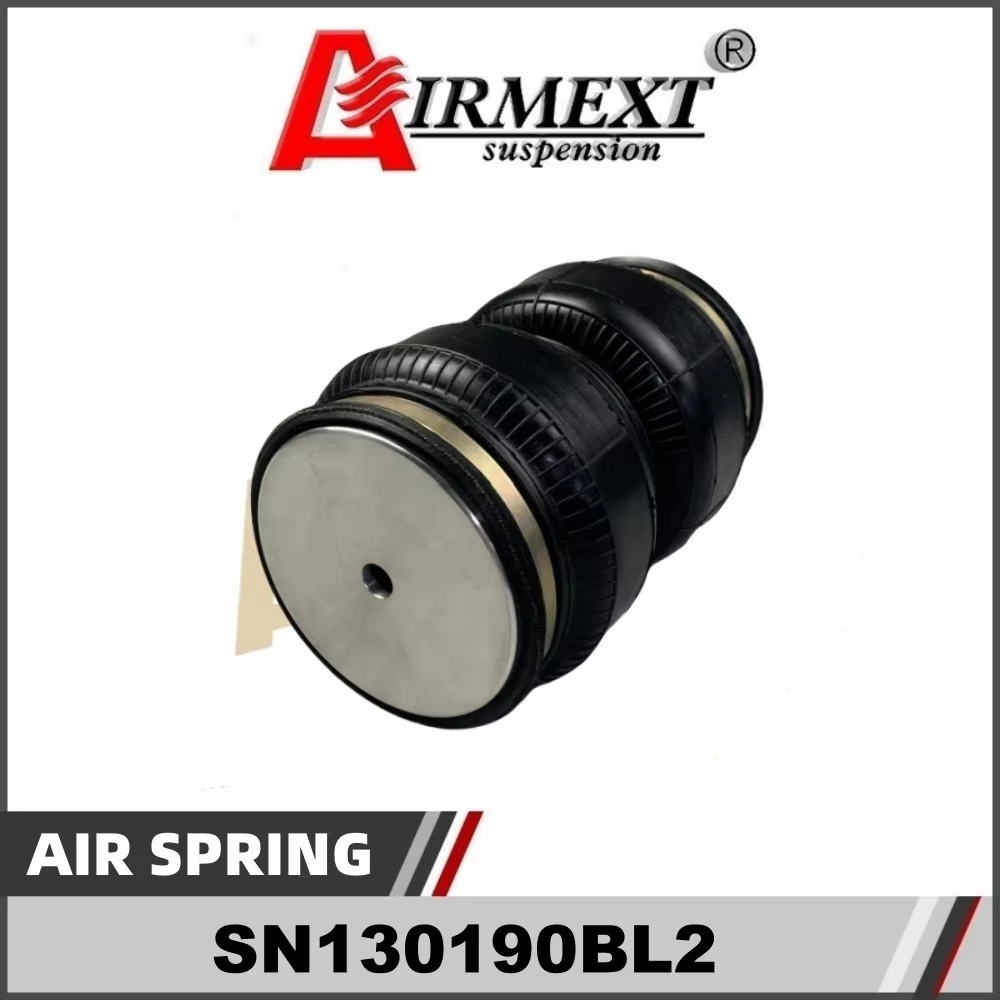

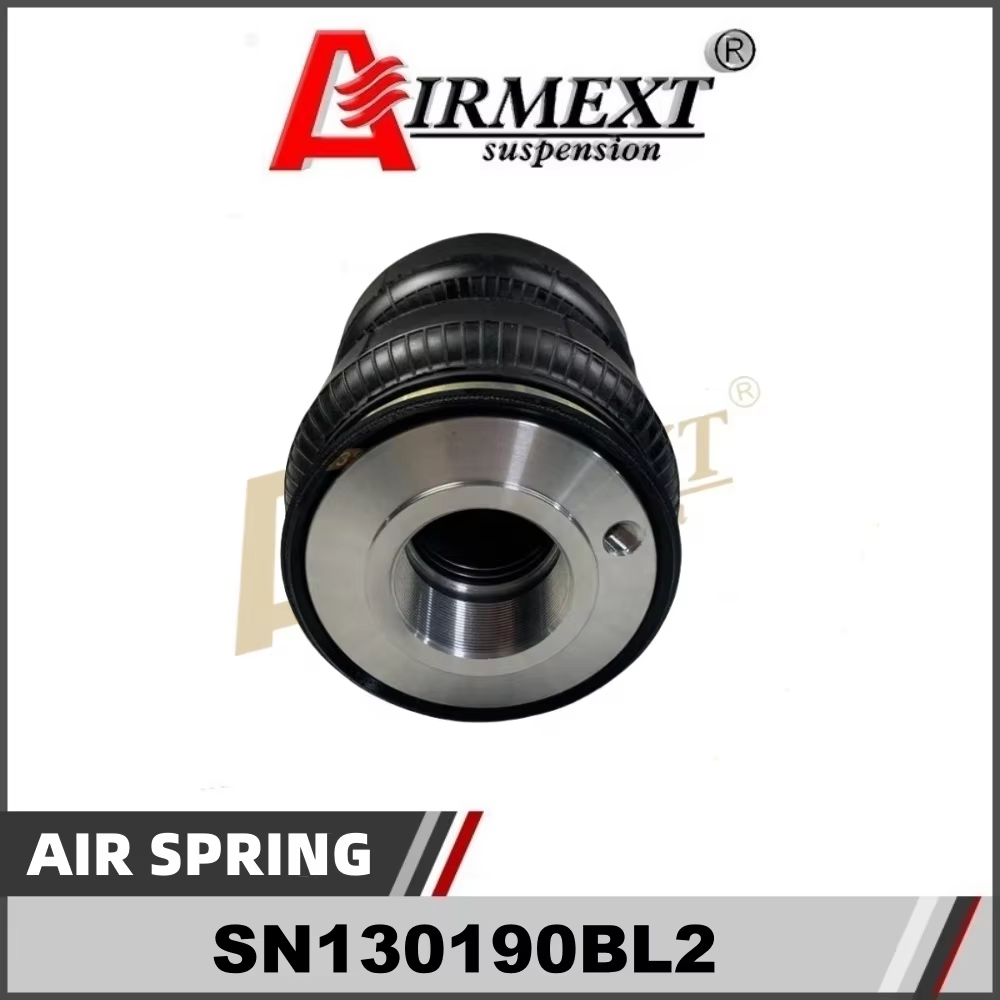

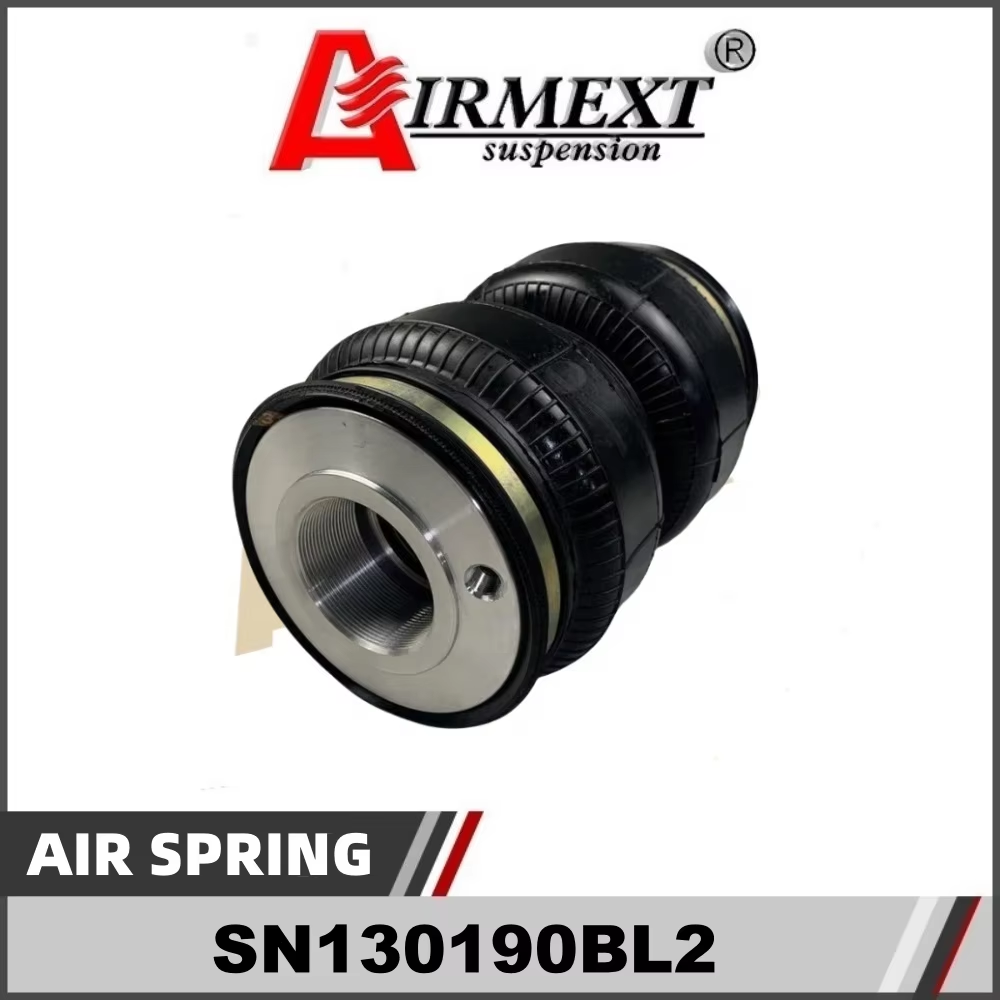

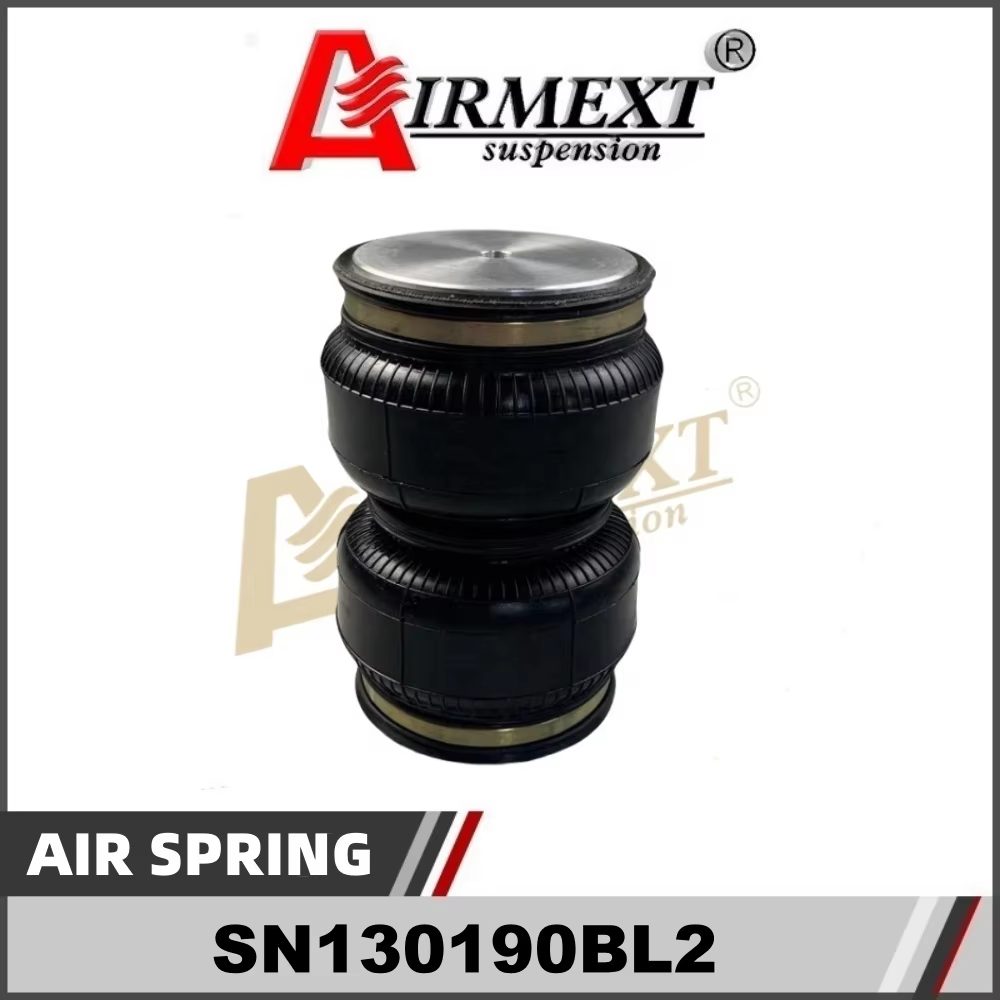

DOUBEL CONVOLUTED AIR SPRING TYPE:  SN130190BL2 series


IMPORTANT NOTE

Pls measure your dimensions of your coilover as per our drawing required below and then choose the correct air spring .



NOTE for customized items (Require MOQ 10 PCS):

Customized products cannot be returned or replaced once products completed , we will not refund for any customized items, as it cannot be sold to other customers. pls try to confirm all the measurements before make order.


PLS MEASURE: [A=? B=? C=? D=? (1)=?(2)=? ]






HOW TO MEASURE YOUR COILOVER THREAD DIMENSION:


For example---


*Shocks thread pitch (A) =M52*2     ---Root Dia./Minor Dia. of inner thread: 52mm /50mm

*Sealing part (B) =50mm                  -----Dia.of smooth section on damper above thread

*​Top shaft diameter(C) =12mm

*D=20mm

*①= 130mm

*②= 45mm



A

Don't understand why some air spring endplates must be made separated ?  Read explanation as below------



It depends on the smooth section diameter (B), if it is larger than diameter of shocks thread (air spring root smaller thread diameter ),the air spring endplates must be designed separated two parts like this.

For example, M55*1.5-54, shocks smooth section diameter (B) is 54mm, it is larger than shocks thread part diameter(air spring root smaller thread diameter )55-1.5=53.5, the air spring cannot get through the smooth section(B=54mm), so we have to make the endplates two parts, assembly air spring with shocks from both top and bottom direction (air spring screw from top, separated endplate screw from bottom)


* This air spring cannot get through the smooth section(B=54), screw the separated endplate from bottom side of shocks and meet with air spring, finally connect two parts with bolts.











CHOOSE MORE AIR SPRING TYPE




K structureimageimage



important reminder

4-PLY LAYER STRUCTURE MAKE AIR SPRING STRONG AND DURABLE ENOUGH !

PERFECT &NICE WORKMANSHIP OF AIR SPRING RUBBER BELLOW  (Original photos without any beautifying)

PERFECT & NICE WORKMANSHIP OF SHOCK ABSORBER (Original photos without any beautifying)

FINISHED PRODUCTS


SORTING GOODS FOR DIFFERENT CUSTOMERS

OUR FACTORY OVERVIEW




Brand Name:
AIRMEXT
material:
PCBR /Natural rubber
end plates/lock rings MATERIAL:
Super hard aluminum/Stainless steel
Fitted Coilover type:
optional brand coilover
Natural /Max/Min diameter at 110PSI:
130mm/145mm/127mm
Natural height/Max Height /Min height at 110PSI:
190mm/226mm/85mm
Sealing design:
Double inner sealing
Air port:
1/8NPT
LOAD CAPACITY AT 110PSI:
605kg
G.W:
2KG
CROSS TYPE:
NO
SAFE WORKING PRESSURE:
≤145PSI
WORKING TEMPERATURE:
-40℃~70℃
