AIRMEXT air suspension

For Benz CLA-class (2012-2019) /AIRMEXT airstrut kit/Auto parts/air suspension/ air spring/pneumatic/shock absorber

stars, based on 0 reviews
$1160.00now$930.00 [ 1 set / Lot ]
Quantity Price
1+ $930.00
2+ $911.40
1499items available
Contact Us

product details(ok)

MODEL FITMENT

--- Mercedes Benz A160 (2013-2018)
--- Mercedes Benz A180 (2013-2018)
--- Mercedes Benz A200 (2013-2018)
 ---Mercedes Benz A220 (2013-2018)
--- Mercedes Benz A250 4MATIC (2013-2018)
--- Mercedes Benz A45 AMG (2013-2018)
--- Mercedes Benz B160 (2012-2019)
---Mercedes Benz B180 (2012-2019)
--- Mercedes Benz B200 (2012-2019)
---Mercedes Benz B220 (2012-2019)
--- Mercedes Benz B220 4MATIC (2012-2019)
--- Mercedes Benz B250 (2012-2019)
--- Mercedes Benz CLA C117 (2012-2019)



---Mercedes Benz CLA 180 (2012-2019)
--- Mercedes Benz CLA 200 (2012-2019)
--- Mercedes Benz CLA 250 (2012-2019)
--- Mercedes Benz CLA 240 4MATIC (2012-2019)
---Mercedes Benz CLA 45 AMG (2012-2019)
---Mercedes Benz CLA AMG (2012-2019)
--- Mercedes Benz CLA 45 4MATIC
--- Mercedes Benz GLA
--- Mercedes Benz GLA 180
--- Mercedes Benz GLA 200
--- Mercedes Benz GLA 250
--- Mercedes Benz GLA 250 4MATIC
--- Mercedes Benz GLA 45 AMG
--- Infiniti QX30

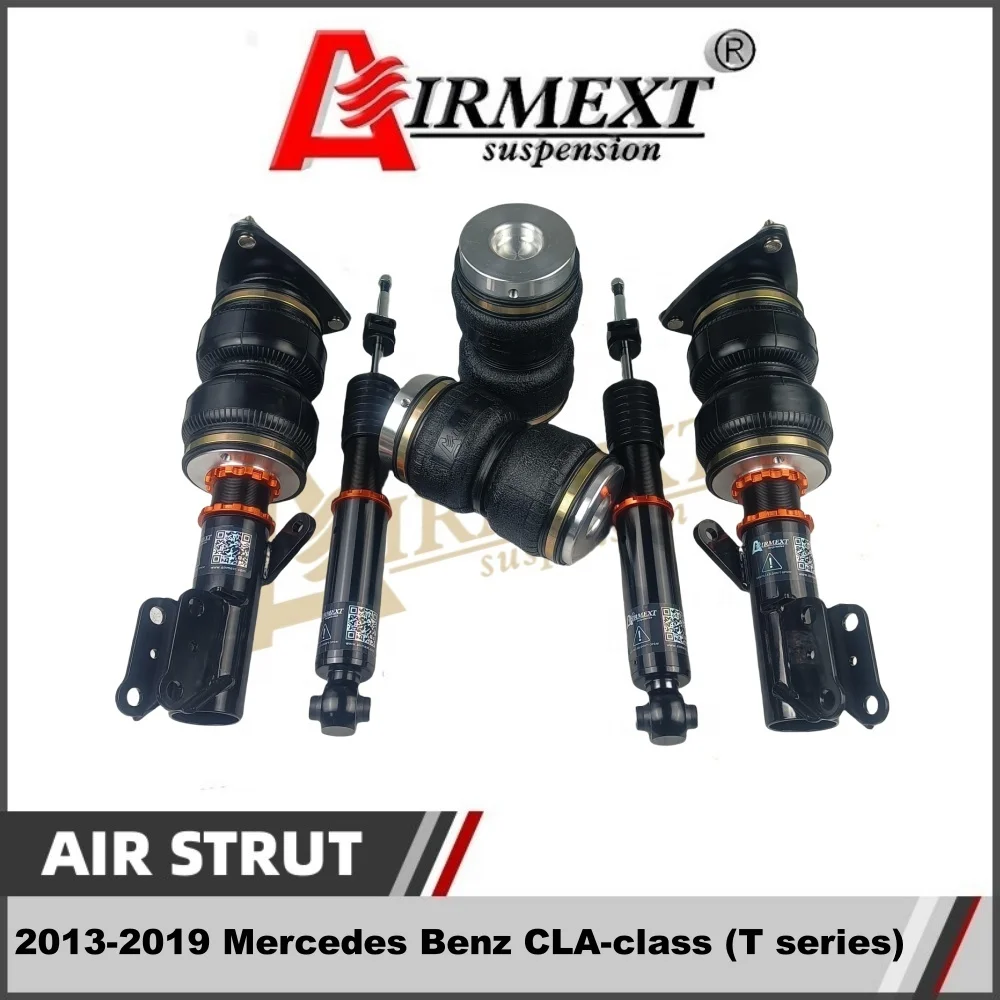

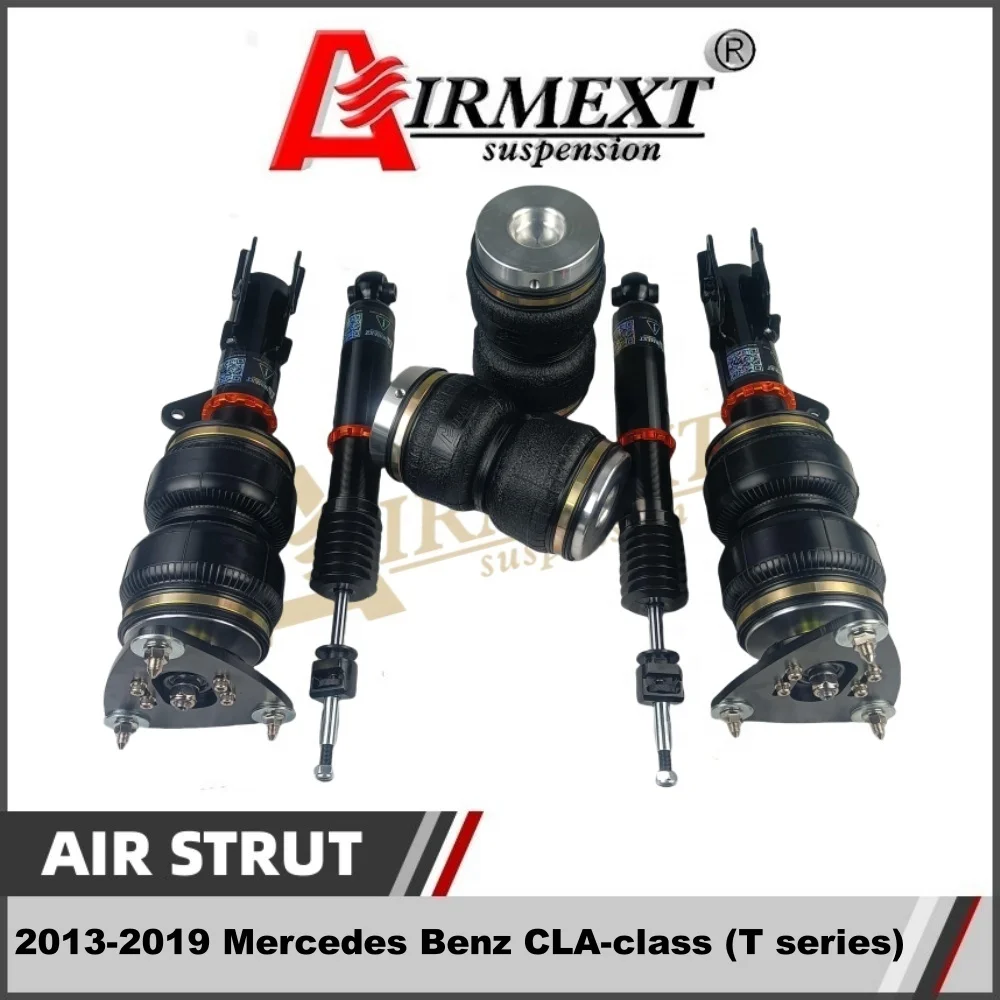

2.This air strut pack including


-------4 * AIRMEXT Coilover shock absorber (2 for front and 2 for rear)

-------4 * AIRMEXT Rubber air spring (2 for front and 2 for rear)

-------2 * spacers + bolts

-------4 * 1/8NPT air fittings

-------4 * dampers

-------2 *spanners (wrenches)

-------2 * sway bar (optional if needed)

-------2 * Pillow ball camber plate (optional and extra charged,pls contact with on-line service)



3. Features:



-----32-level adjustable Damping

which allow you the ability to dial in your air suspension even further. Set damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.



-----Threaded & adjustable shock mounts

Adding further tuning of your ride height at any PSI setting you chose is the ability to have an adjustable  mount just like coilover kits. The benefit to this is being able to get the perfect ride height at basically any PSI you are comfortable driving at.



-----125mm drop (front &rear)

Front and rear air strut with 125mm drop (stroke) that lift & lower your car body at random, work with AIRMEXT G5 air management to be 3-level memoried height adjusted.



-----High Pressure Double Bellows Progressive Rate Spring

Engineered and designed to match your vehicle, slim double bellow type bags are available depending on what type of OEM suspension your vehicle has. Air pressure directly corresponds with how stiff or soft your car rides. Higher PSI = stiffer ride. LoweRR PSI = softer ride. Each car is different and it may take some time to dial in your preferred settings.



----High Performance AIRMEXT Shock Absorbers

Every air strut kit comes with the same quality shocks that are standard in our  coilover systems. Air strut shocks have a different internal valving setting to accommodate changes in PSI.



-----12 Month Limited Warranty
Our warranty is 12 months from the original date of purchase which covers manufacturer defects



4.This item is just air strut part of one complete set air suspension system, you need to match other accessories  as per your interest. AIRMEXT,ACCUAIR, AIRLIFT controlling system etc.



5.It is to adjust the height of chassis by automatically control, rise automatically

when driving while lower when car parks,  ability of shock absorption can be adjusted at random,

significantly improve the comfort.

IMG_5763IMG_5765IMG_5767IMG_5768IMG_5769



IMG_3511



Alloy aluminum air tank kit 5 GALLON: (option 1)

-------Accessories are exact same as pics showed, including: ------SINGLE PUMP KIT

(1) 5 Gallon air tank (polished Aluminum alloy 5 gallon) *1 piece

(2) 444C air pump *1 pcs

(3) Integrated ECU& Valve Group Unit : 1 piece

(Electronic Control Unit &Solenoid Valve Manifold Group )

(4) Power box: 1 piece

(5) wired controller Panel(LED screen) *1 piece

(6) Oil&Water Separator *2 pcs

(7) Sealing press switch(110psi on/145psi off) *1piece

(8) Connectors *1 set

(9) Air pipe, cables etc. * 1 set

(10) Instruction Manual *1 piece

aluminum

Seamless iron air tank kit  (option 2)

(1) 5 Gallon air tank (seamless air tank 5 gallon) *1 piece

(2) 444C air pump *1 pcs

(3) Integrated ECU& Valve Group Unit : 1 piece

(Electronic Control Unit &Solenoid Valve Manifold Group )

(4) Power box: 1 piece

(5) wired controller Panel(LED screen) *1 piece

(6) Oil&Water Separator *2 pcs

(7) Sealing press switch(110psi on/145psi off) *1piece

(8) Connectors *1 set

(9) Air pipe, cables etc. * 1 set

(10) Instruction Manual *1 piece

seamlessSeeing High Quality of AIRMEXT air suspension from workmanship details----



     Smooth and Fluent thread pitch

IMG_3901(2)

Seeing High Quality of AIRMEXT air suspension from workmanship details----

     Perfect Anodizing processing for camber plate (top mount)IMG_3899(2)Seeing High Quality of AIRMEXT air suspension from workmanship details----

     Perfect & smooth Black Anodizing processing for damper strut

IMG_3930
